Description

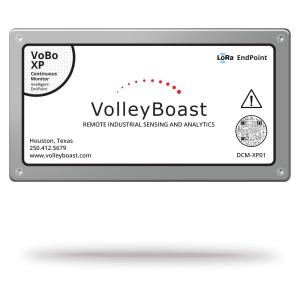

A universal LoRaWAN^® bridge with hazardous area certification, converting wired sensors and transmitters into LoRaWAN^®-enabled wireless devices.

• LoRaWAN^® 1.0.4 compliant and backwards compatible
• US915 (902-928 MHz) channel plan and others available
• Powered by a user-replaceable primary battery.
• Up to 6 miles transmission range (line of sight)
• Universal I/O – each VoBo HL-1 endpoint has:
  • 3 Analog inputs, jumper selectable between voltage and current inputs
  • HL-1 can supply 5 to 24 volts for sensor power
  • 3 Discrete digital inputs, jumper selectable between dry contact and voltage
  • 1 Discrete digital wake-up input, dry contact
  • RS485 Modbus^® RTU read/write
• Available with customer-defined pre-configuration
• Available with optional VoBoSync technology
• Available with optional VoBoAnalytics edge compute capability
• Available with optional multiple Modbus^® RTU read/write capability
